2016
Germany
Project Requirements
The design of the grouted connection required a grout with compressive strength class C100/115. The workability must be secured for at least 3 hours in a wide temperature range. A compressive strength of > 20 MPa after 24 hours was necessary for fast progress. The fulfilment of all requirements have been demonstrated in a single case approval.
Sika Solutions

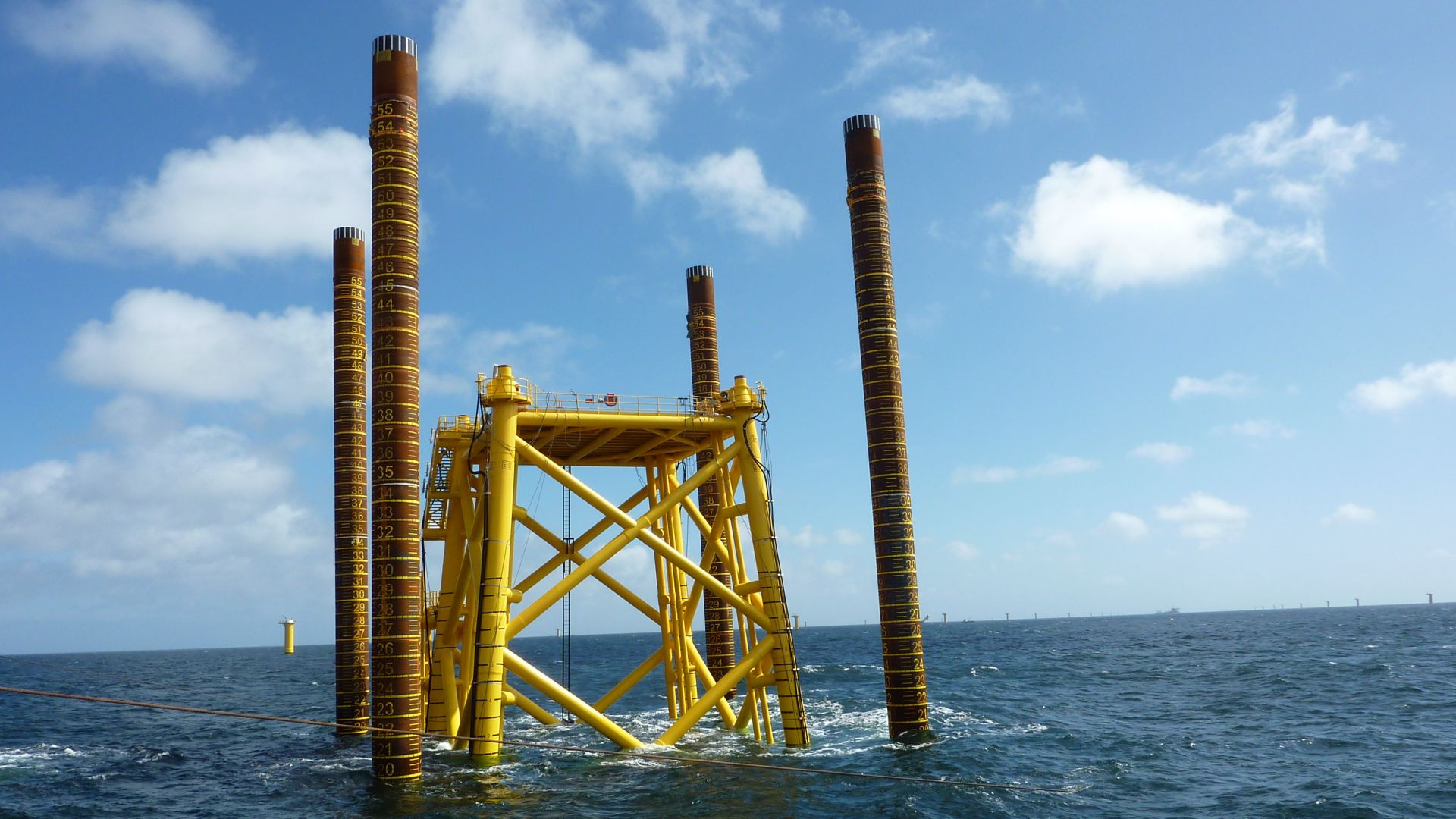

SikaGrout®-3500 WP, a high performance grout specially designed for demanding offshore conditions, was delivered in 1.5 tn bags. The grout was mixed in 3 tn batches in an orbital mixing unit and pumped 110 m to the piles.
Product Used
SikaGrout®-3500 WP
Project Participants
Owner
Vattenfall
Contractor
Seaway Heavy Lifting
Grouting Contractor
Core Grouting Services
